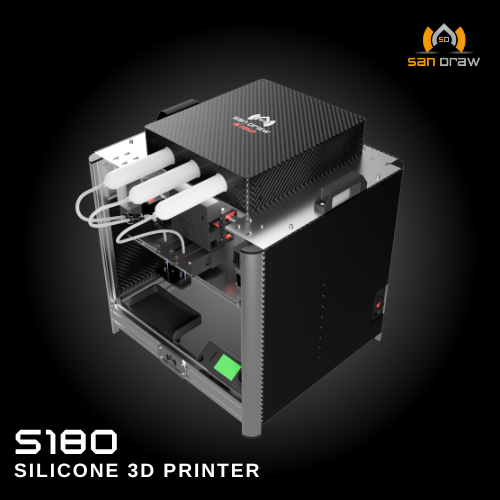

S180 Silicone 3D Printer

Based on the appropriate printing range of S053 and S300's exclusive INPA technology, which allows for the simultaneous printing of two-part silicone and water-soluble support material, we are proud to officially launch our latest model, S180.

S180 is the world's first medium-sized silicone 3D printer that utilizes a motorized screw feeding system and is capable of printing water-soluble support materials. Developed exclusively to meet industry demands, the S180 boasts Five key features:

1. Medium-sized printing capacity accommodating water-soluble support material, making it suitable for printing various medical parts
2. Equipped with INPA (Independent Nozzle Position Adjustment) technology, allowing independent vertical movement of the left and right nozzles, effectively preventing nozzle collisions with the printed objects during horizontal movement
3. Features a dual-nozzle height automatic sensing system
4. Incorporates electrically controlled valves at the top of the nozzles, reducing stringing issues during printing
5. Utilizes the patented FAM (Fluid Additive Manufacturing) technology exclusively developed by San Draw

Product specifications:
1. Incorporates the exclusive FAM (Fluid Additive Manufacturing) technology.
2. Includes the exclusive FAMufacture software by San Draw.
3. Compatible with four types of two-part silicone materials and water-soluble support material for 3D printing.
4. Utilizes a substantial amount of CNC aluminum alloy components, ensuring a sturdy yet lightweight structure.
5. Printing range: 150 x 200 x 100 mm
6. XY Accuracy: ±0.04mm
7. Printing layer thickness: 0.05~0.2mm
8. Equipped with an electric control valve on the nozzle.
9. Equipped with an automatic nozzle height sensor.
10. Equipped with safety protection for the material feeding system.

---
